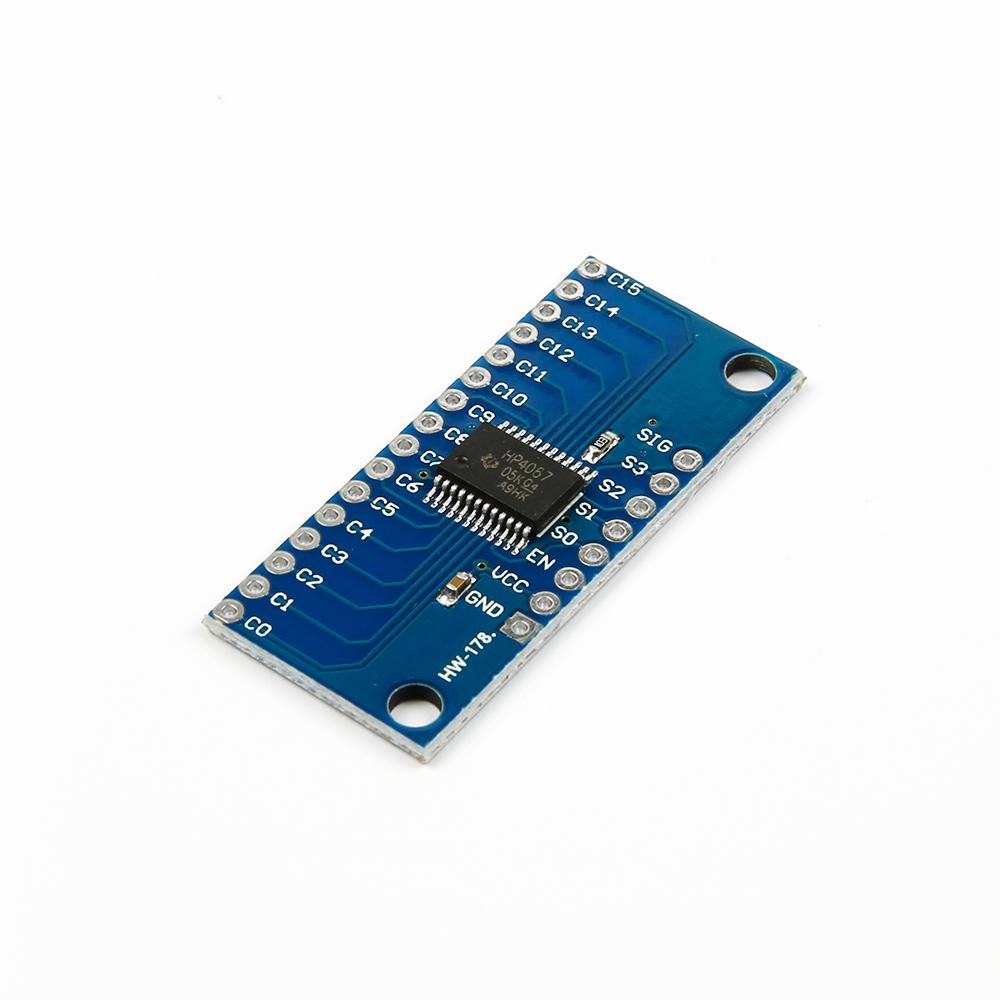

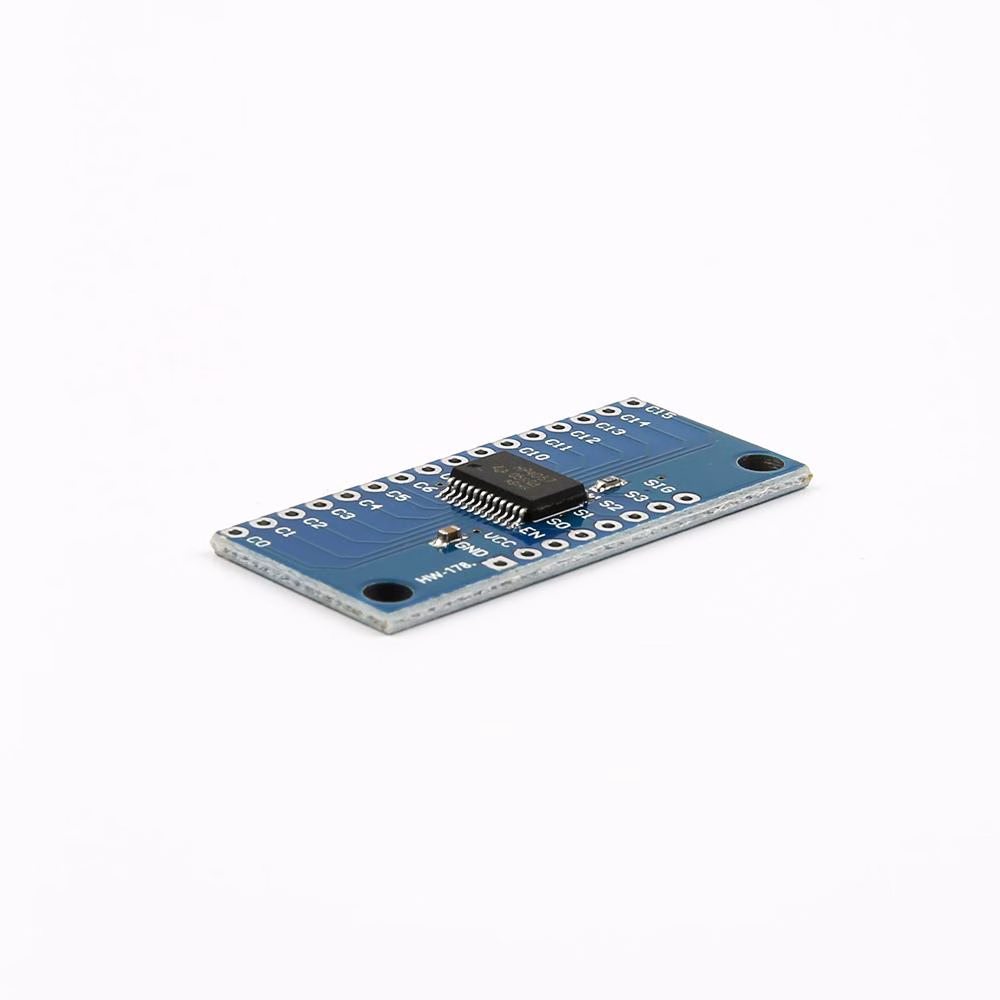

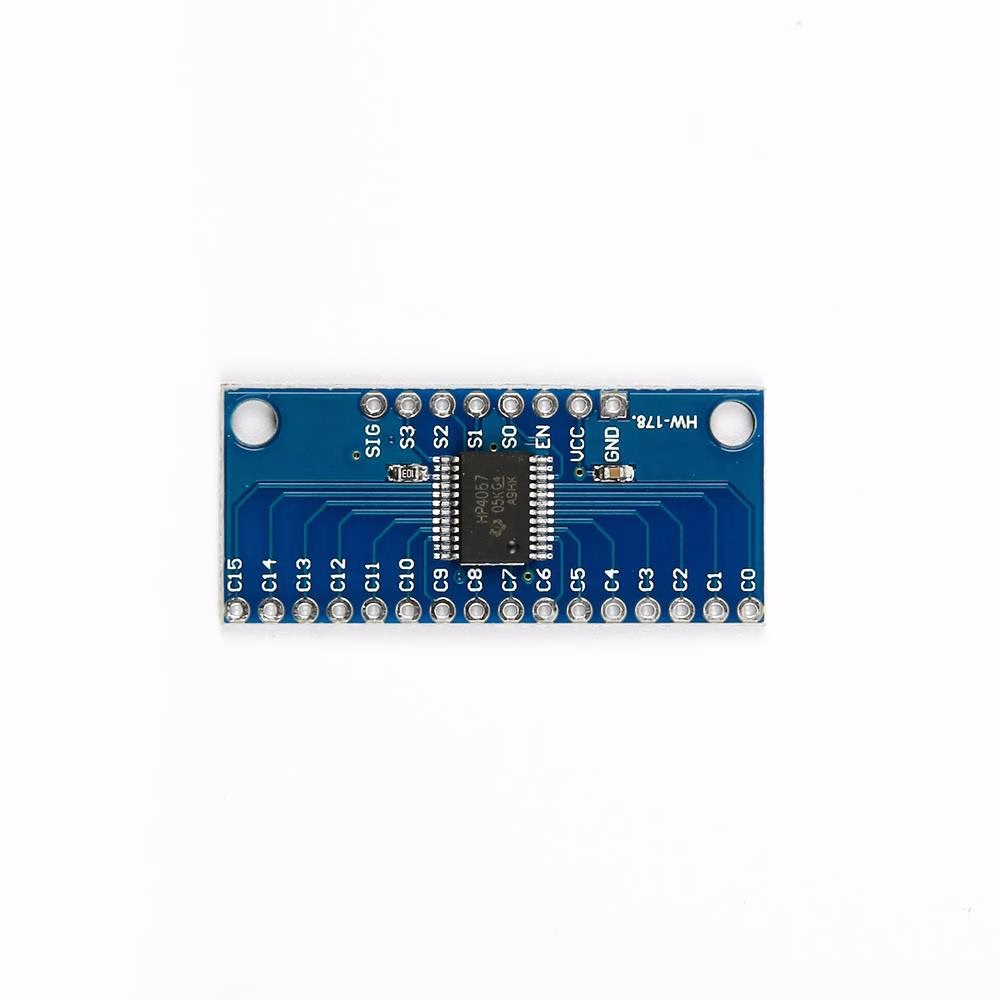

CD74HC4067 Analogue/Digital MUX Breakout 16 Channel Multiplexer with header pins

It works with both digital and analog signals (the voltage can’t be higher than VCC), and the connections function in either direction. To control it, connect 4 digital outputs to the chip’s address select pins (S0-S3), and send it the binary address of the channel you want (see the datasheet for details). This allows you to connect up to 16 sensors to your system using only 5 pins!

* Size: 41mm x 18mm

* 2V to 6V operation

* “”On”” resistance: 70 Ohms @ 4.5V

* 6ns break-before-make @ 4.5V
