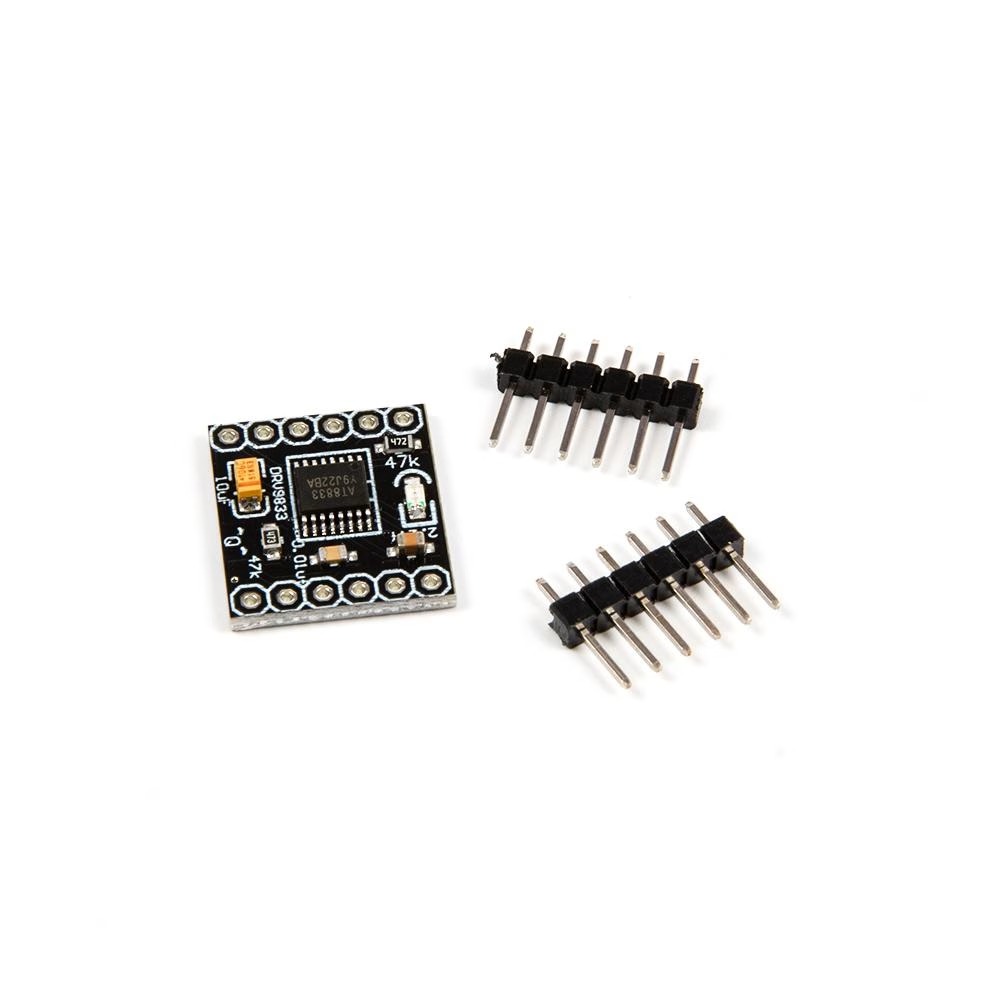

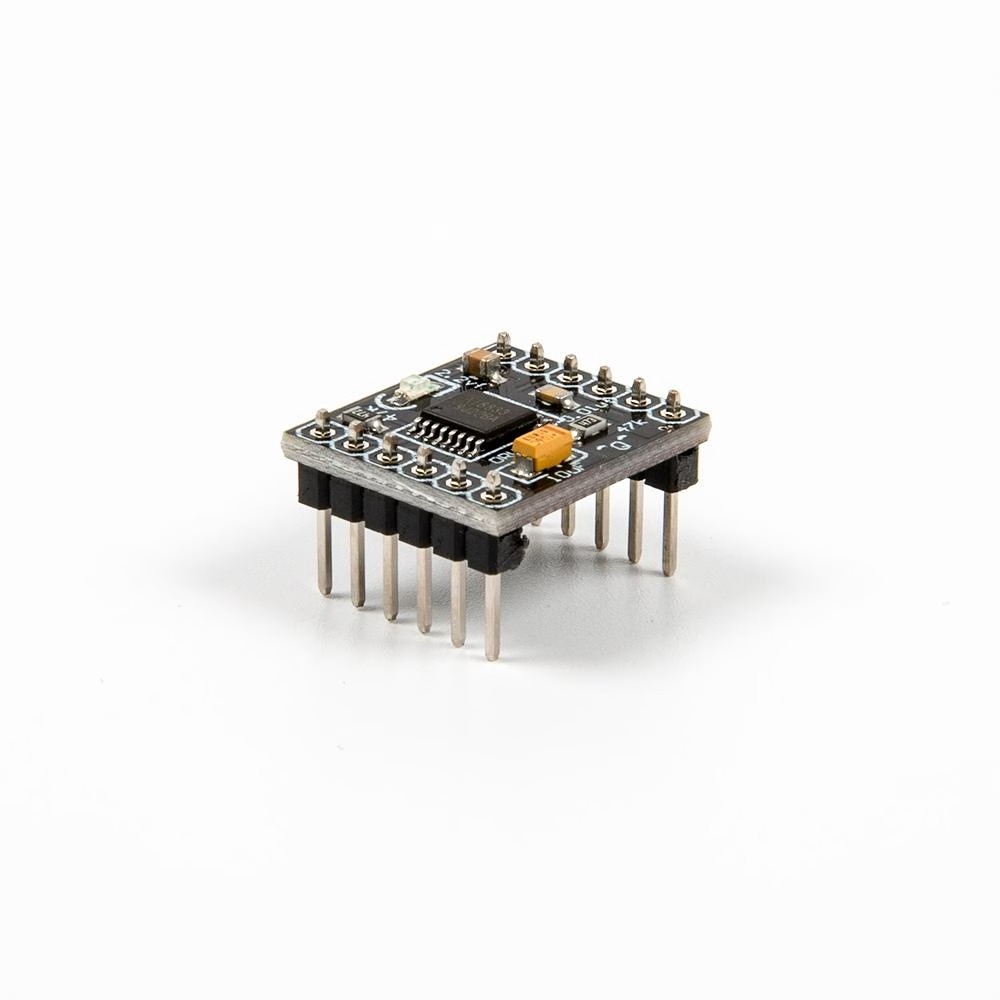

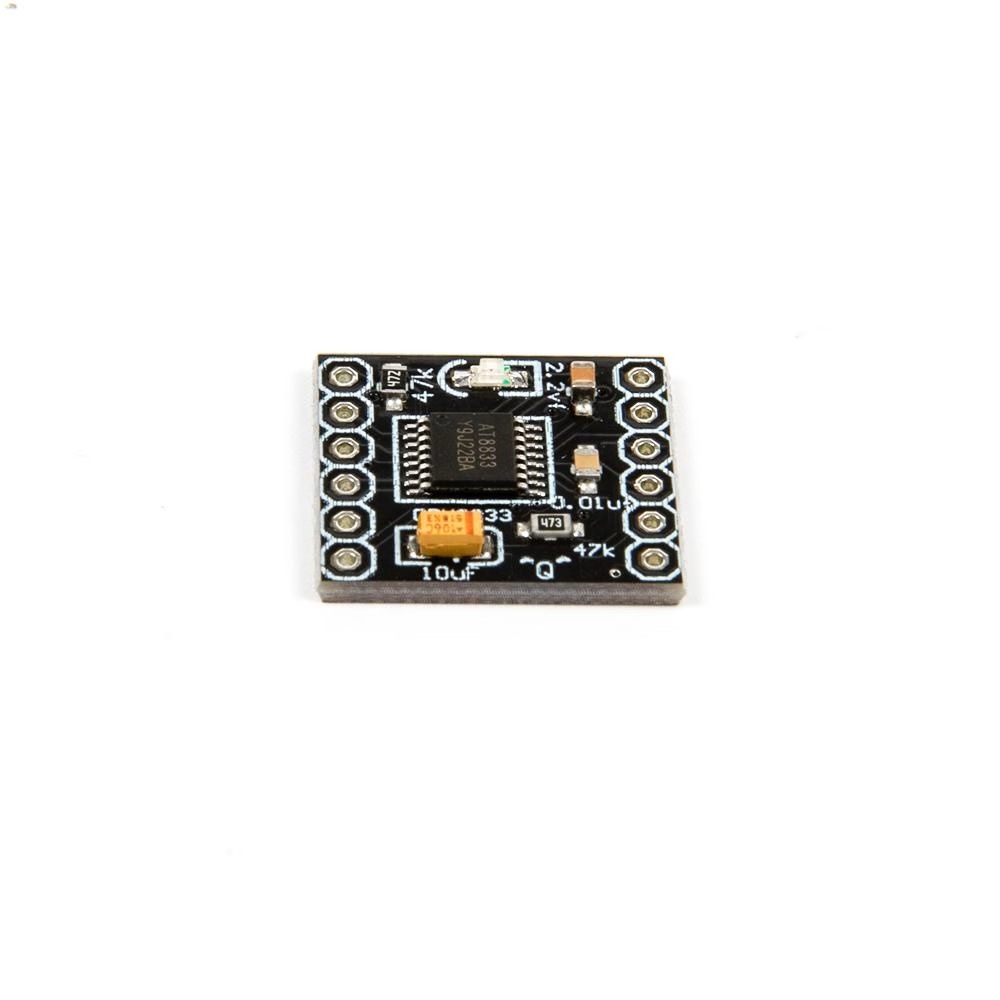

2 Channel Motor Drive Module DRV8833 Motor Drive Module
DC Motors, Electronics, OUTPUT DEVICES
2 Channel Motor Drive Module DRV8833 Motor Drive Module
13.00 د.إ
Availability: 4 in stock
- Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor;
- Operating voltage: 2.7 V to 10.8 V;
- Output current: 1.2 A continuous (2 A peak) per motor;
- Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor;
- Inputs are 3V- and 5V-compatible;
- Under-voltage lockout and protection against over-current and over-temperature;
- Reverse-voltage protection circuit;
- Current limiting can be enabled by adding sense resistors (not included).
