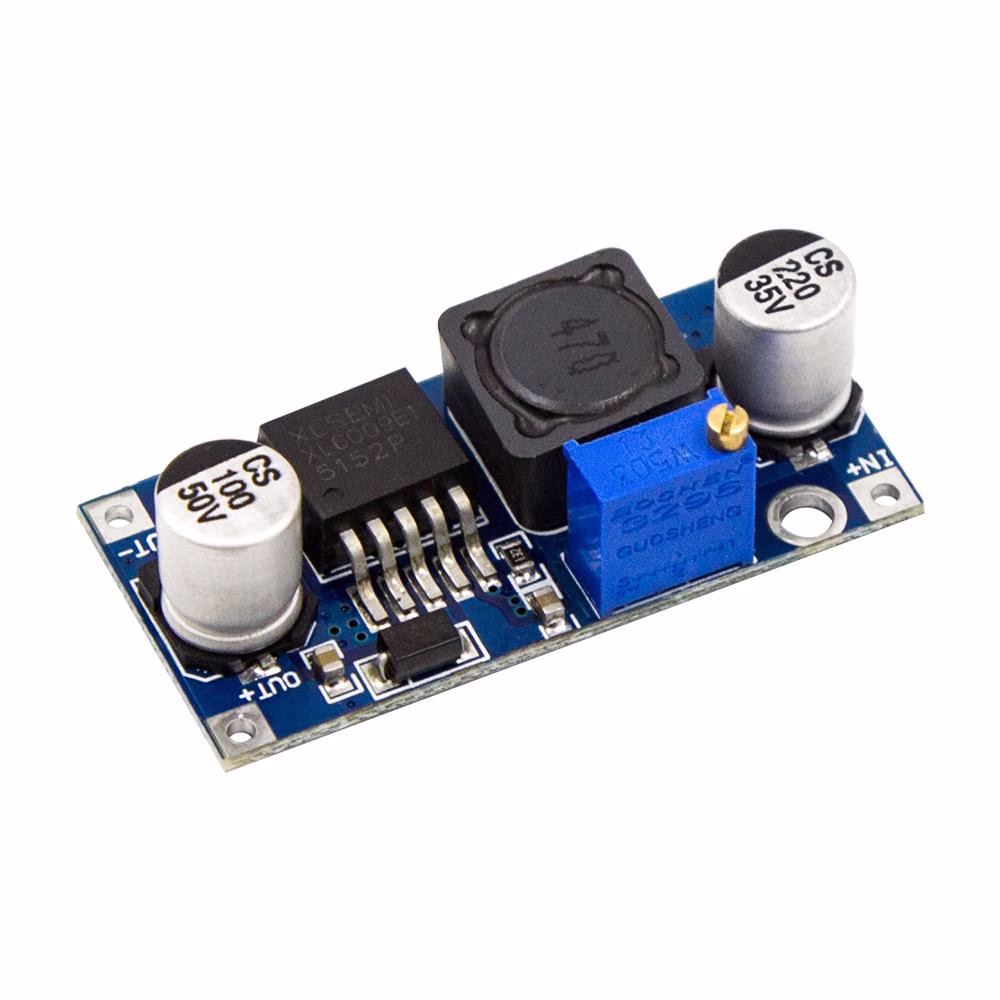

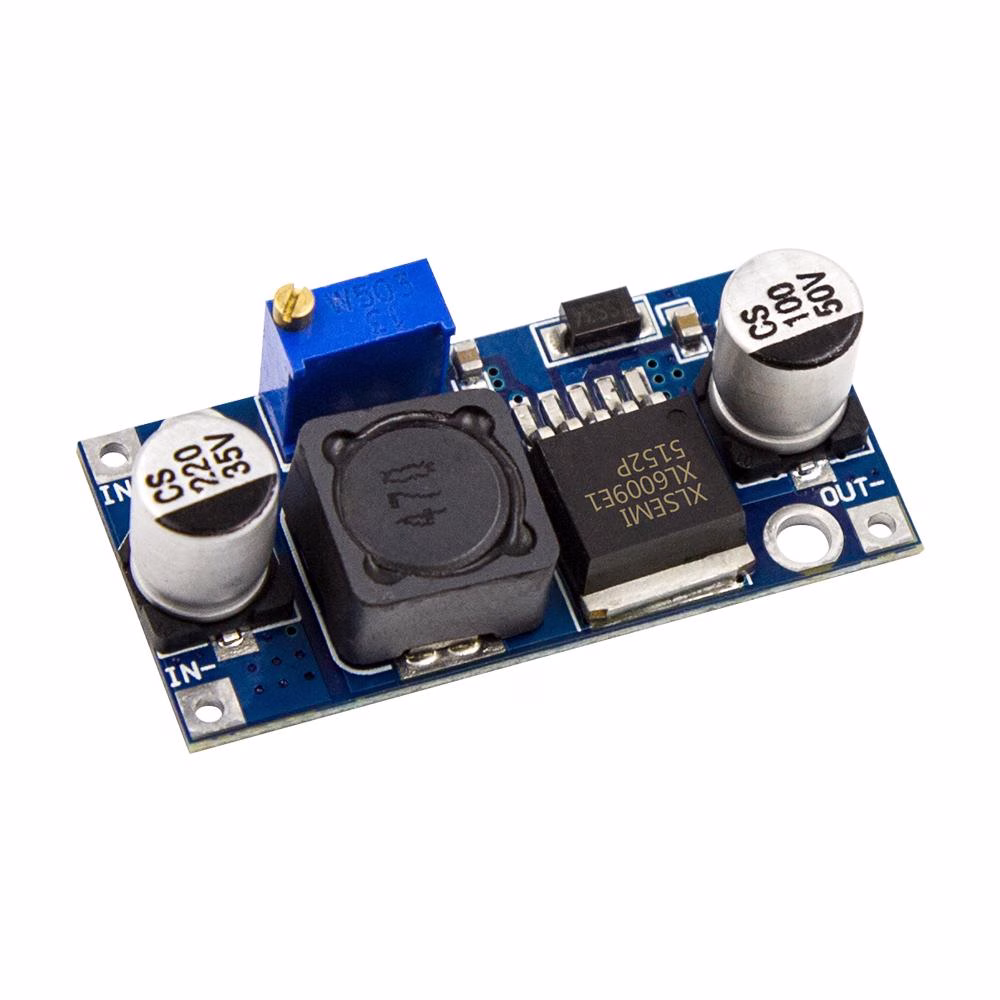

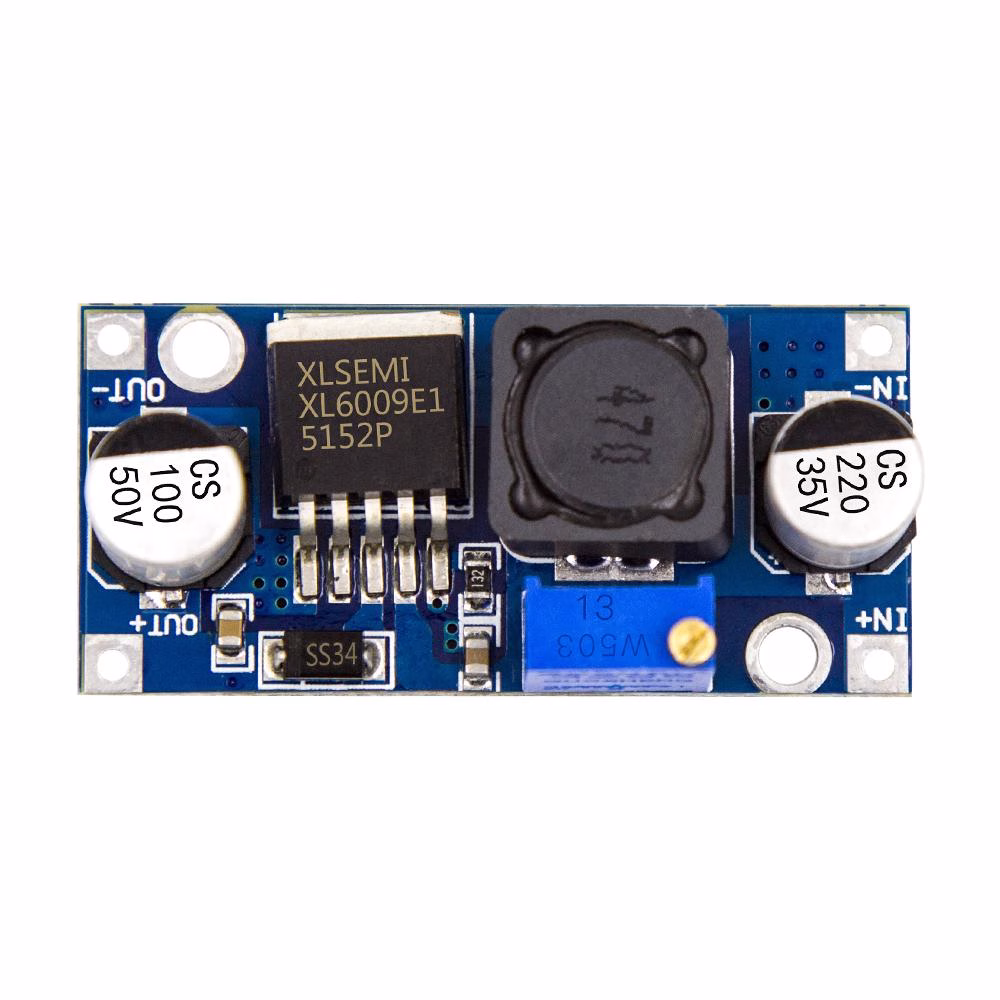

4A Boost Buck DC-DC adjustable Step Up Converter XL6009 Module

, ,

4A Boost Buck DC-DC adjustable Step Up Converter XL6009 Module

14.00 د.إ

Availability: 6 in stock

- +

You can set a voltage on this DC-DC converter and the converter itself will determine whether it should reduce or increase the voltage.

Specifications:

  • Module type: Non-insulated step-up/down (Buck/Boost)
  • Rectification: Non-synchronous rectification
  • Input voltage: 5V-32V
  • Output voltage: 1.25V-35V
  • Maximum input current: 3A
  • Maximum output current: 4A (4A requires most likely cooling)
  • Conversion Efficiency: 94% (highest)
  • Switching frequency: 400KHz
  • Output ripple: 50mV (max, factory specification)
  • Load regulation: ± 0.5%
  • Voltage control: ± 0.5%
  • Operating Temperature: -40°C to +85°C
  • Short-circuit protection: none
  • Dimensions: 48 x 25 x 14 mm

Note: The potentiometer has multiple turns. So it may take a while before you have reached the desired voltage. The potentiometer can rotate about 25x from start to finish.
