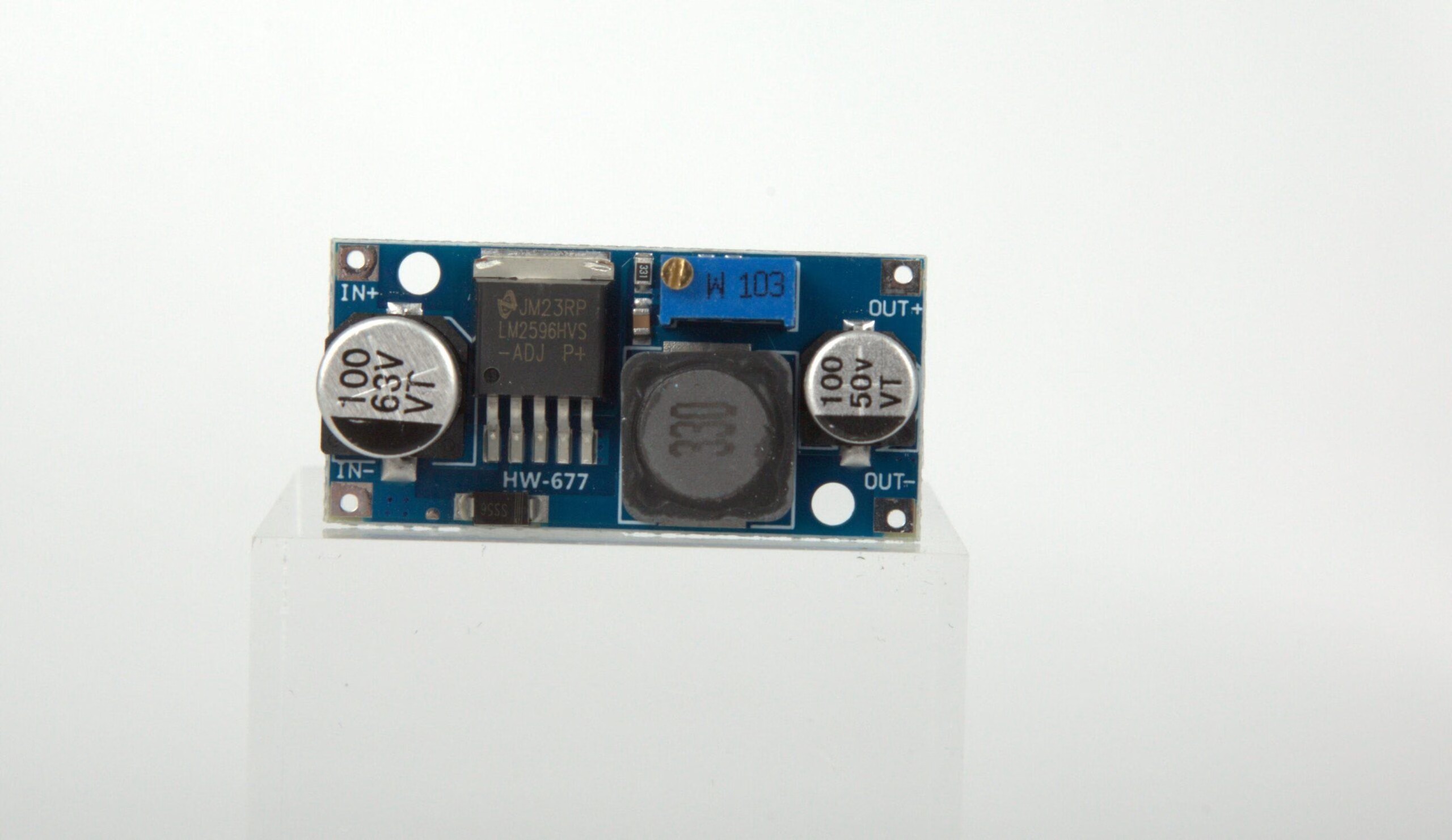

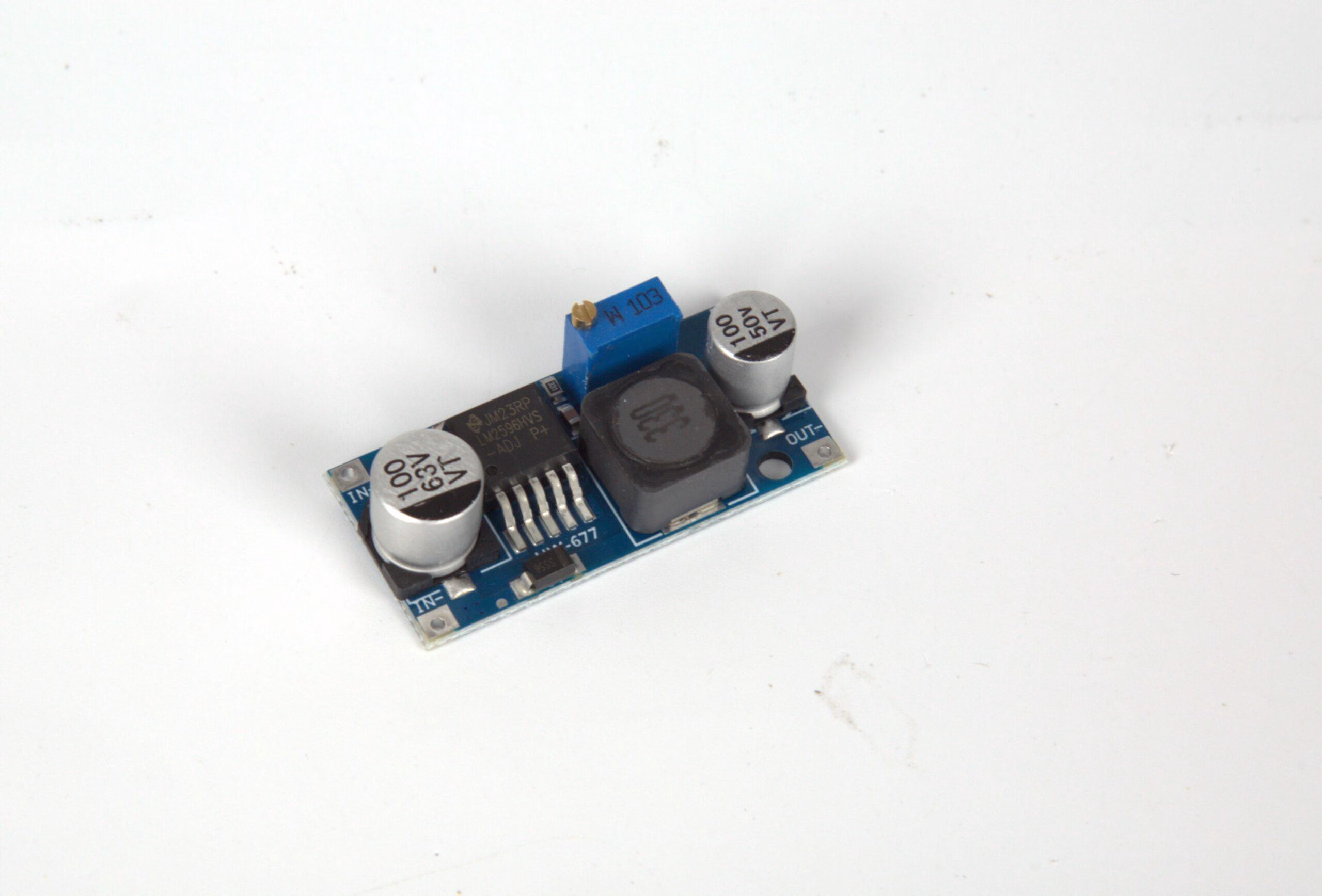

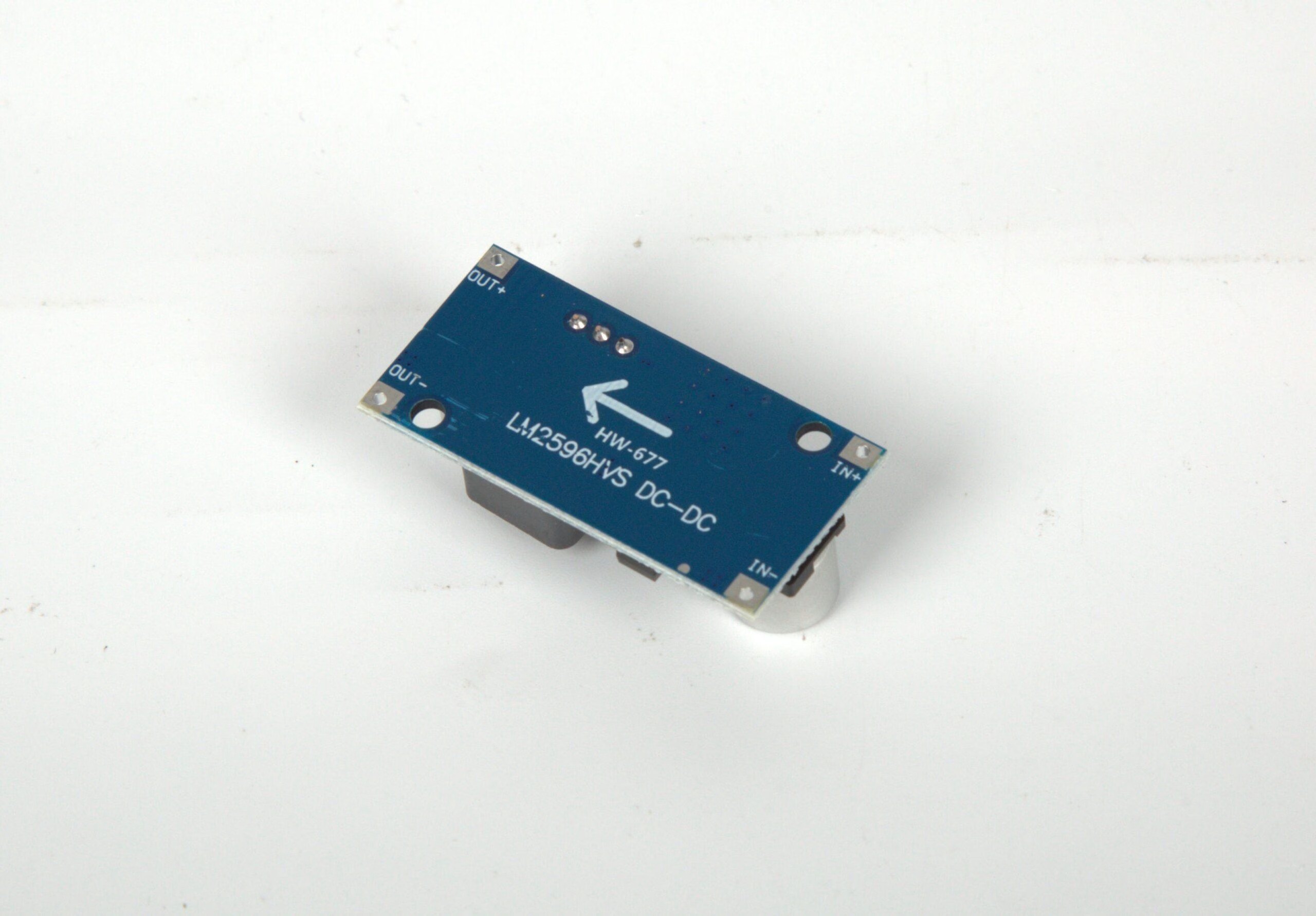

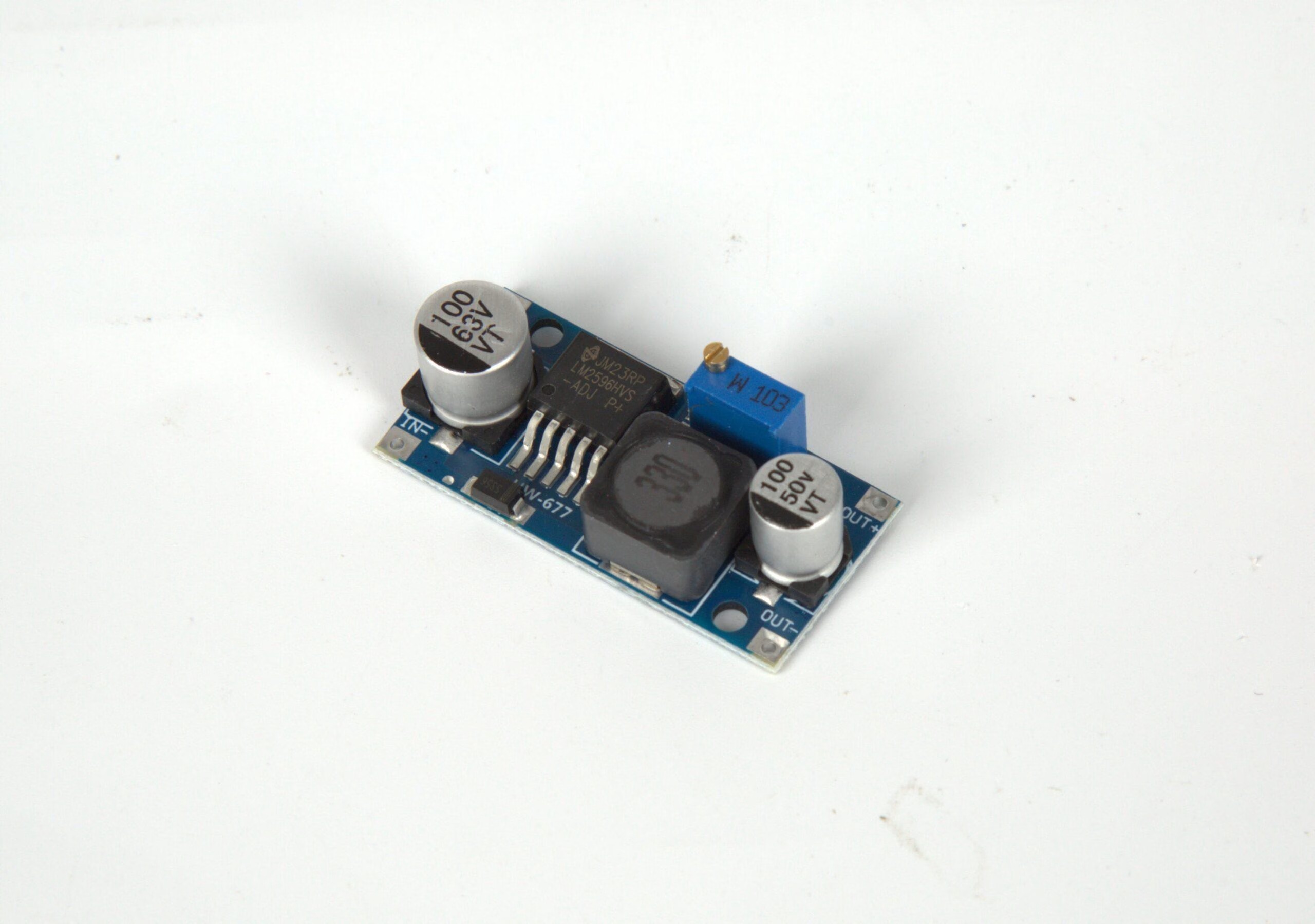

1.The length is 45* wide 24* high 11mm (including potentiometer)

2.Input mode: IN+ input positive, IN- input negative

3.Output mode: OUT+ output positive, OUT-output negative

4.The input voltage: 4.5-60V (Note: higher than 50v can not work for a long time)

5.Adjustment mode: firstly connect the input power supply (between 5-60V) and then use the multimeter to monitor the output voltage and adjust the potentiometer (generally turn the booster clockwise, reverse the buck)

6.Output voltage: (3-35V) continuously adjustable (no-load debugging is recommended).

7.Pressure difference: at least 1.5V

8.Output current: rated current 2A, no more than 3A

9.Output power: no more than 15W

10.Conversion efficiency: 92% or less (the higher the output voltage, the higher the efficiency),Static power consumption is only about 6mA

11.Connection mode: welding, after add pin can be directly welded on the PCB

12.Working temperature: industrial grade (- 40 to + 85 )

13.Load regulation: ± 1%

14.Voltage regulation: ± 0.5%

15.Short circuit protection: current limiting, overheating protection
